Specifications

• Rated Flow: 90 LPM (24 GPM)
• Maximum Inlet Pressure: 350 Bar (5000 PSI)
• Cartridge Material: All parts steel. All operating parts hardened steel.
• Operating Temp. Range/Seals: -40°C to +93.3°C (Nitrile)(-40°F to +200°F)
• Fluids Compatibility/Viscosity: Mineral-based or synthetic with lubricating properties at viscosities of 45 to 2000 SSU (6 to 420 cSt)
• Filtration: ISO Code 16/13, SAE Class 4 or better
• Approx. Weight: .45 kg (1.00 lbs.)
• Cavity: 3A
• Form Tool: Rougher | Finisher
• Pressure Compensated Priority Flow Control Valve: J1A125
• Code -Adjustment Style: W - Knob Adjust
• Code - Optional Regulated Flow Setting:Omit - Omit for no setting (Std.)* Specify setting if required (LPM)
• Maximum Regulated Flow: 38 LPM (10 GPM)
• Code - Seals / Kit No.: N - Nitrile, Buna-N (Std.)/(SK30011N-1)
• Note: * Setting for standard: J1A125. Inlet: 45 LPM (12 GPM). Regulated: 25 LPM (6.5 GPM)

This item is surplus stock, it may or may not have original packaging, has not been tested and it is new old stock (unless otherwise stated) there may be some scratches and or blemishes as well as dust from storage. It is usable with no cracks or broken parts unless otherwise stated. Please see all photos of items for condition prior to purchase.

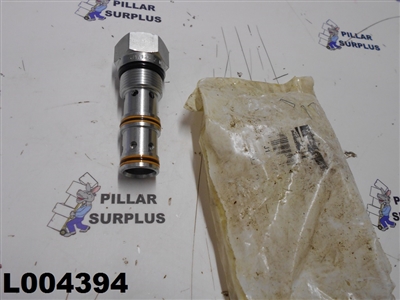

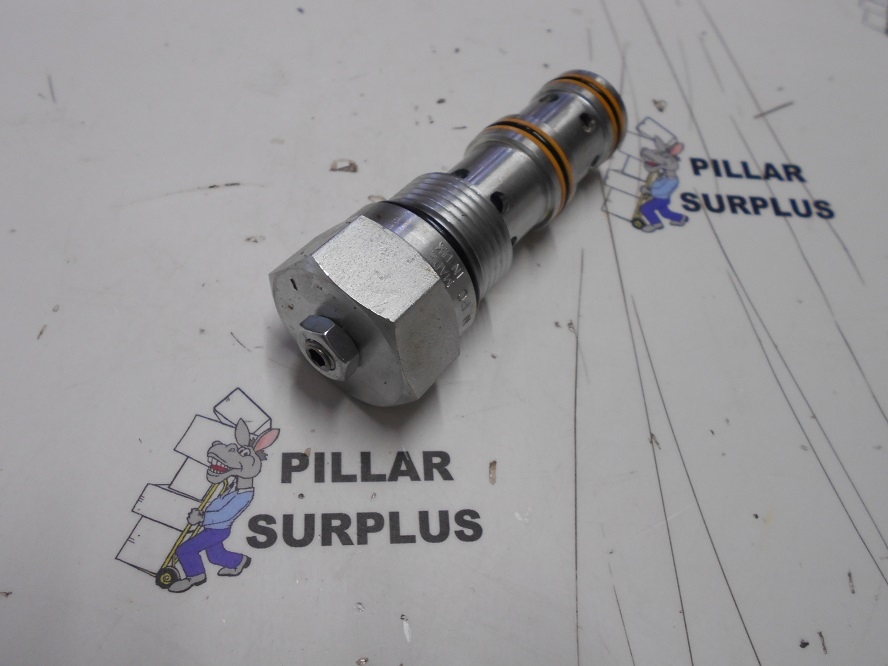

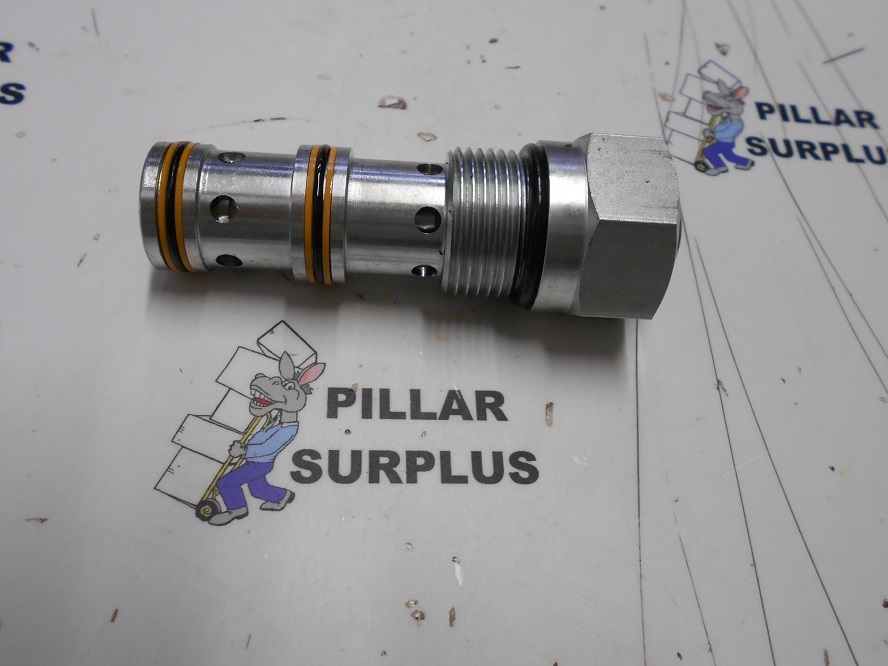

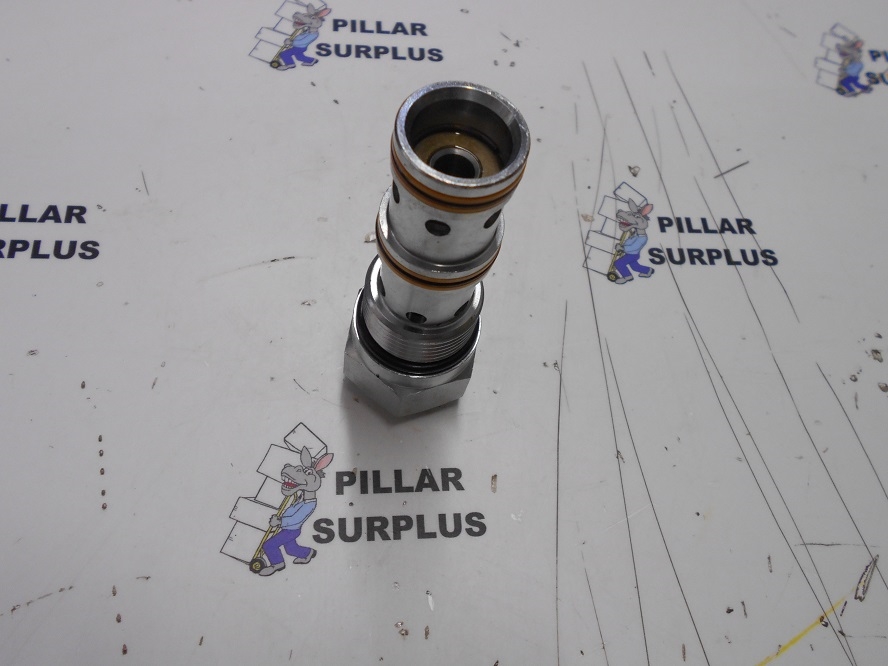

Pictures are of actual item. If there are more than one of these in stock, the picture is representative of the condition of all, e.g. new in box, surplus stock from our warehouse.
