Main

Range of product 9007

Series name Heavy duty

Product or component type Limit switch

Product specific application Standard box

Device short name 9007C

Body type Plug-in

Head type Rotary head

Material Metal

Fixing mode By the body

Movement of operating head Rotary

Type of operator Zinc spring return without operating lever (-) 9007C lever

Switch actuation From left and right

CW and CCW

Type of approach 1 or 2 programmable direction lateral approach

Electrical connection (AWG 22...AWG 12) screw-clamp terminals, 1...2

Cable entry 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1

Number of poles 1

Contacts type and composition NC-NO

Contacts operation Snap action

Positive opening Without

Sale per indivisible quantity 1

Complementary

Body material Zinc

Head material Zinc

Function available -

Switch function SPDT-DB

2

Contacts material Silver contacts

Terminals description ISO n°1 (1-2)NC

(3-4)NO

Maximum actuation speed 90 ft/min with 45° cam angle, levers only

130 ft/min with 30° cam angle, levers only

Tripping angle 10 °

Maximum displacement angle 90 °

Repeat accuracy +/- 0.002 in linear travel of cam

[Ie] rated operational current 1.2 Aat 600 V AC, A600 conforming to NEMA

0.1 Aat 600 V DC, Q600 conforming to NEMA

[Ithe] conventional enclosed thermal

current

10 A

[Ui] rated insulation voltage 600 V degree of pollution 3 conforming to UL 508for contact block

600 V degree of pollution 3 conforming to CSA C22.2 No 14for contact block

[Uimp] rated impulse withstand voltage 2.5 kV ACfor 1 min conforming to CE

2.2 kV ACfor 1 min conforming to UL

2.64 kV ACfor 1 s conforming to CSA

Short circuit protection 10 A by CC fuse, protection type: non-time delay

Electrical durability 1000000 cycles

Local signalling Without

Mechanical durability 10000000 cycles

Width 1.55 in

Height 4.02 in

Depth 2.5 in

Product weight 1.25 lb(US)

Environment

Shock resistance 60 gn (duration = 9 ms) conforming to IEC 60068-2-27

Vibration resistance 25 gn (f = 10...150 Hz) conforming to IEC 60068-2-6

NEMA degree of protection NEMA 2 conforming to Nema type 250

NEMA 4 conforming to Nema type 250

NEMA 6 conforming to Nema type 250

NEMA 6P conforming to Nema type 250

NEMA 12 conforming to Nema type 250

NEMA 13 conforming to Nema type 250

NEMA 1 conforming to Nema type 250

IP degree of protection IP67 conforming to IEC 60529

Class of protection against electric

shock

Class 0 conforming to IEC 61140

Ambient air temperature for operation -20...185 °Ffor standard environment

Ambient air temperature for storage -20...185 °F

Environmental characteristic Standard environment

Protective treatment Epoxy powder coat

This item is surplus stock, it may or may not have original packaging, has not been tested and it is new old stock (unless otherwise stated) there may be some scratches and or blemishes as well as dust from storage. It is usable with no cracks or broken parts unless otherwise stated. Please see all photos of items for condition prior to purchase.

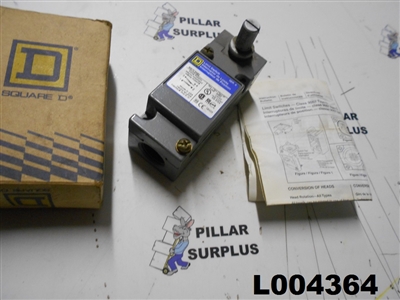

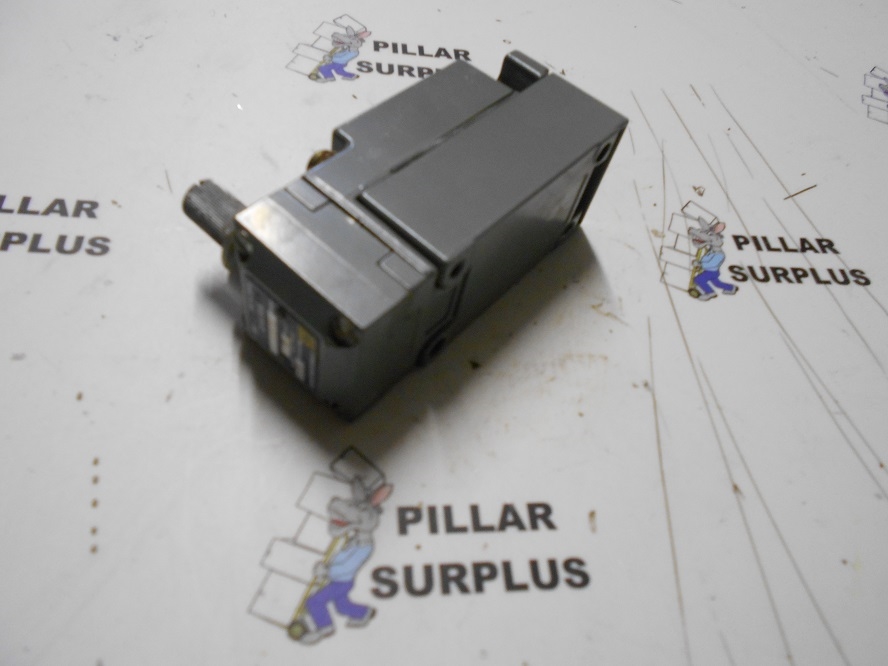

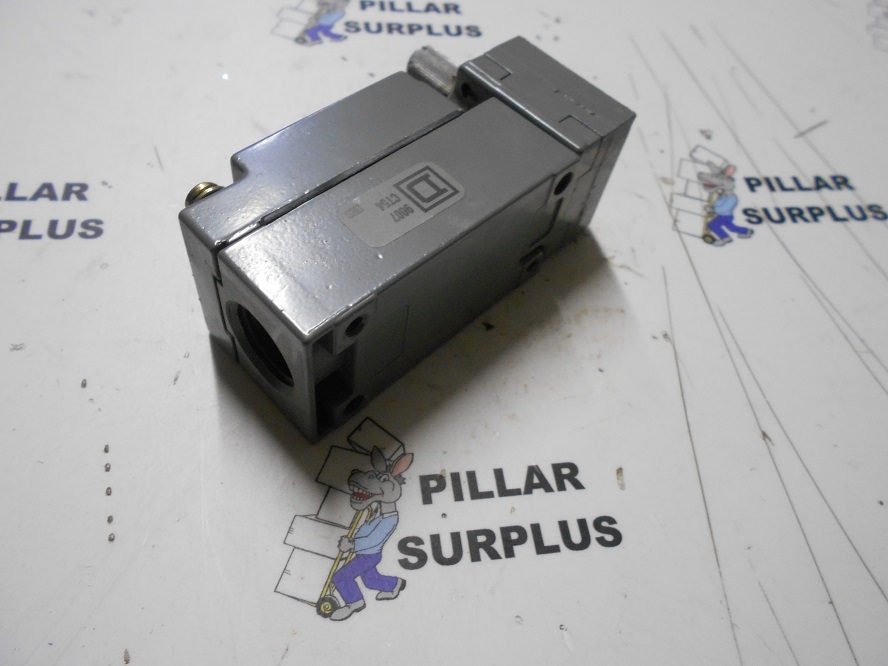

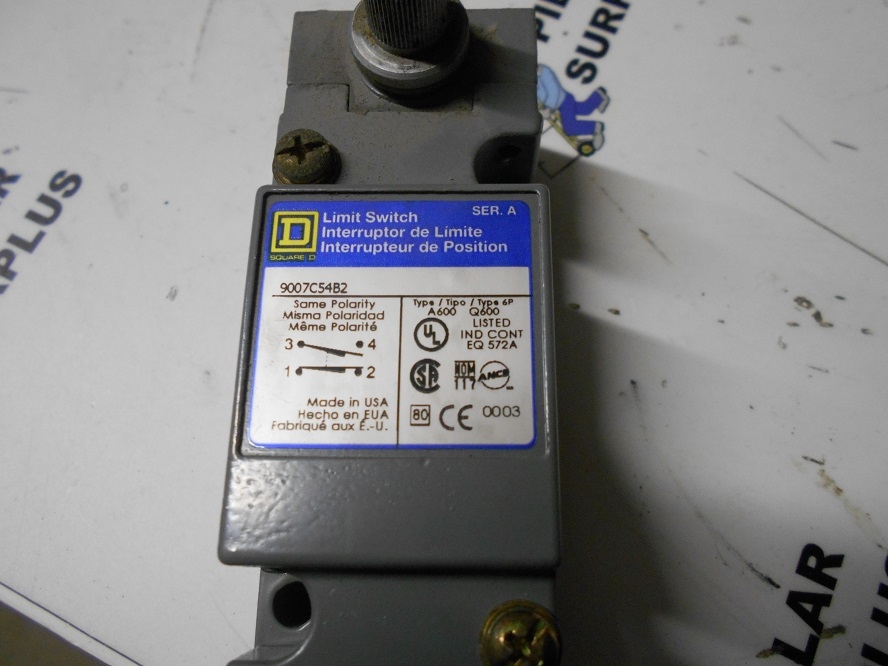

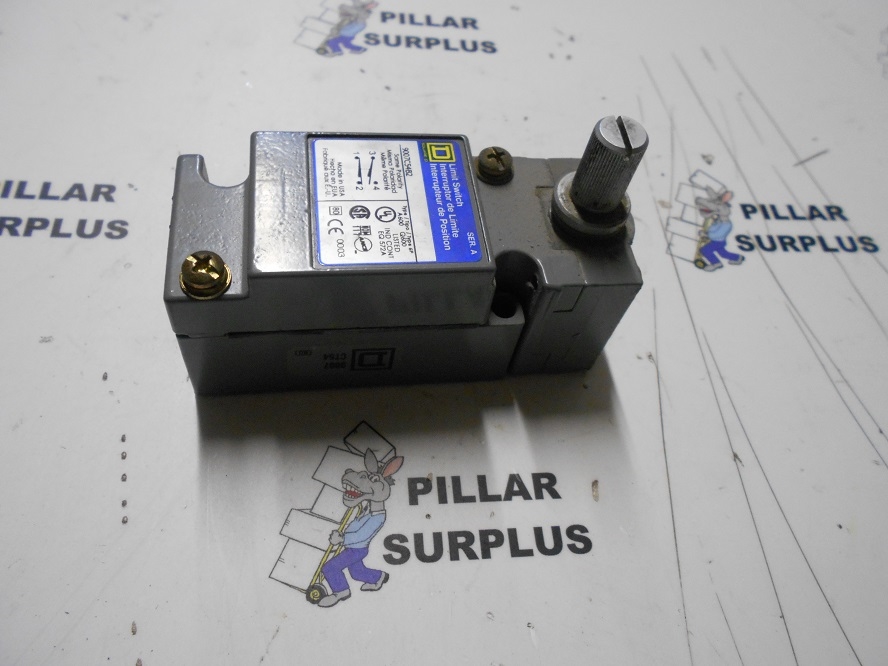

Pictures are of actual item. If there are more than one of these in stock, the picture is representative of the condition of all, e.g. new in box, surplus stock from our warehouse.
